Fiat Key Replacement

Fiat Key Replacement

Fiat Key Replacement
237,00TND(TTC)


Fiat Key Replacement

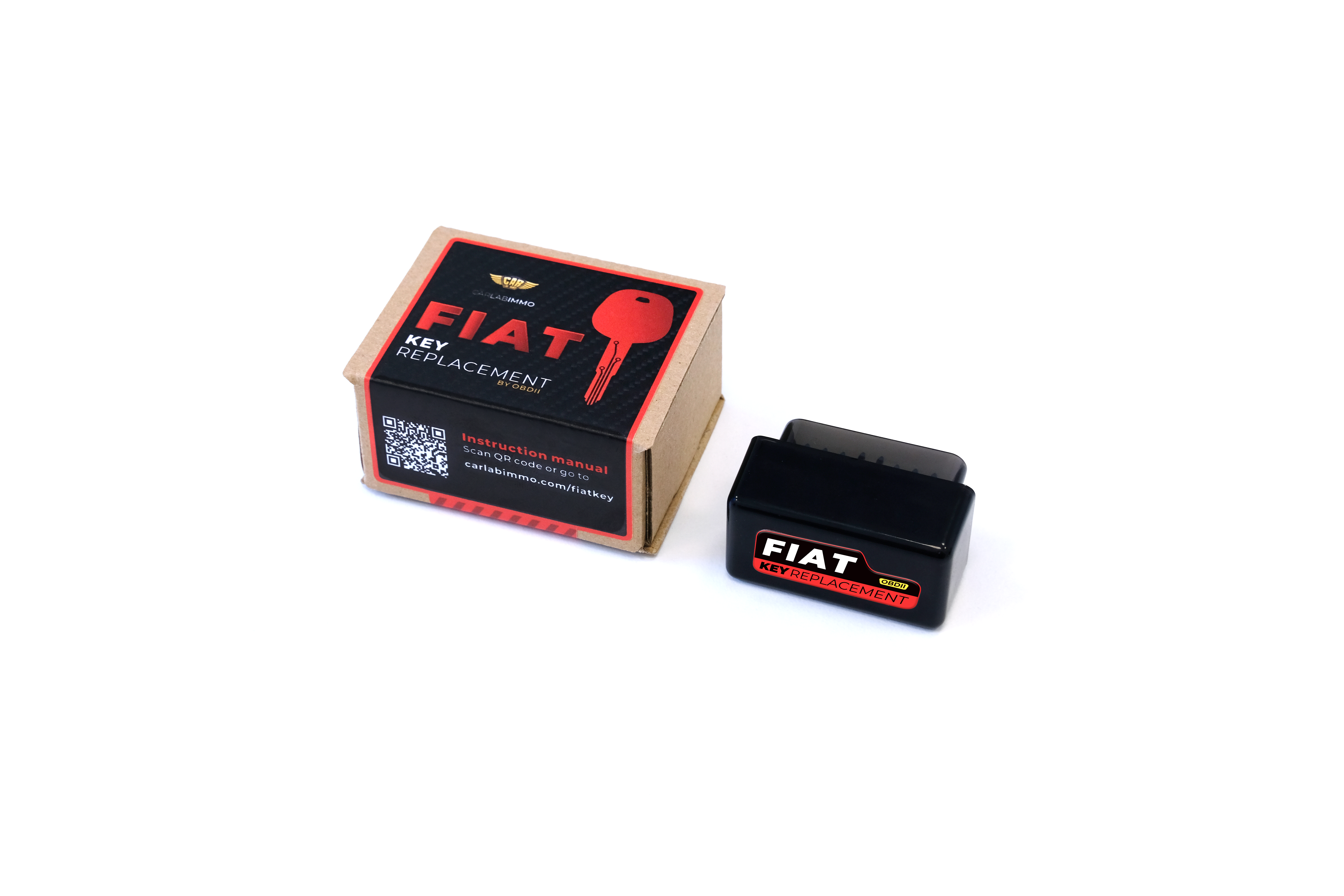

FIAT Key Replacement is an innovative car electronics tool designed for making a backup copy of the car key.



  • Saves and stores the code of your Fiat key
  • Can be used later, in the event of losing or damaging your key
  • Plug & Play OBD2 tool



Use this device if:

  • You have only one working Fiat key and you're afraid of losing it
  • Your current Fiat key is sometimes not working



Instruction Manual: Click to Open






  How to use

No coding or memory changing required.

To use Fiat Key Replacement, you need one working key so that the device can read the key code and make a backup.

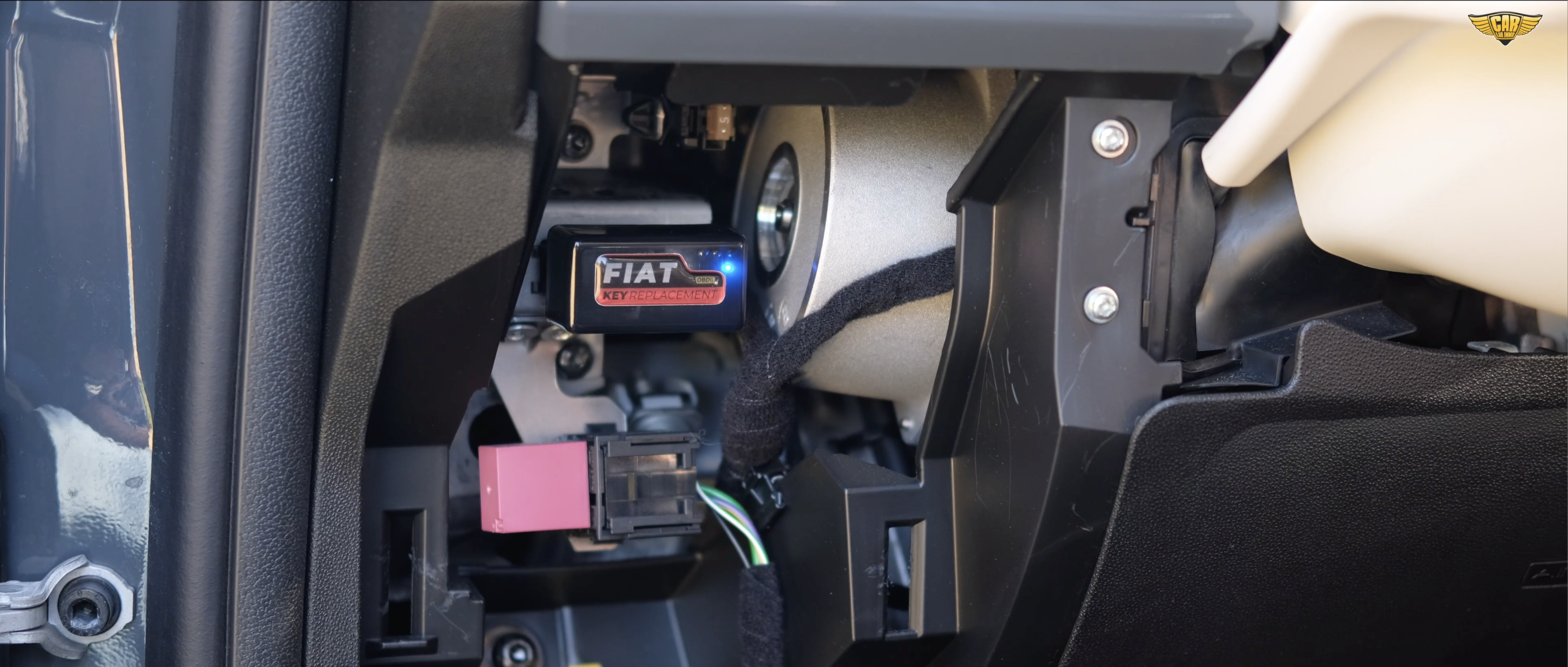

Once the key code is stored in the device, you can simply duplicate only the metal part of the key. As long as the device is plugged into the OBDII socket, the duplicated key will start the car.



List of supported ECUs:

Bosch

  • Bosch EDC16C39
  • Bosch ME7.9.10
  • Bosch MED7.6.1

Magneti Marelli

  • Magneti Marelli 9GF
  • Magneti Marelli 8GMC
  • Magneti Marelli 8GMF
  • Magneti Marelli 8GSW
    Magneti Marelli IAW 5NF
  • Magneti Marelli IAW 5SF
  • Magneti Marelli MJD 9DF
  • Magneti Marelli MJD 8F2
  • Magneti Marelli MJD 6F3

Detailed List of Supported ECUs and Cars

BOSCH EDC16C39

  • Alfa Romeo 159 2.4 JTD 200HP 2005-2011
  • Alfa Romeo 159 2.0 JTD 170HP 2005-2011
  • Alfa Romeo 147 1.9 JTD 120HP 2000-2010
  • Alfa Romeo Giulietta 2.0 JTD 140HP 2010-
  • Alfa Romeo Giulietta 2.0 JTD 170HP 2010-2014
  • Alfa Romeo MiTo 1.6 JTD 120HP 2008-2018
  • Fiat Bravo 1.9 JTD 150HP 2007-2014
  • Fiat Croma 1.9 JTD 150 HP 2005-2011
  • Fiat Doblo 1.9 JTD 120HP 2005-2010
  • Fiat Doblo 1.6 JTD 105HP 2012-
  • Fiat Doblo 1.3 JTD 90HP 2012-
  • Fiat Ducato 2.3 JTD 127HP 2010-2014
  • Fiat Grande Punto 1.3 JTD 120HP 2005-2018
  • Fiat Idea 1.9 JTD 100HP 2003-2010
  • Fiat Linea 1.6 JTD 105HP 2007-2015
  • Fiat Multipla 1.9 JTD 120HP 2004-2010
  • Fiat Sedici 2.0 JTD 135HP 2009-2014
  • Fiat Sedici 1.9 JTD 120HP 2005-2014
  • Fiat Stilo 1.9 JTD 120HP 2001-2008
  • Lancia Delta 1.9 JTD 190HP 2008-2014

ECU numbers

  • 0 281 018 720 (Fiat Doblo 1.6 JTD 105HP 2012)
  • 0 281 017 784 (Alfa Romeo Giulietta 2.0 JTD 170HP 2014)
  • 0 281 016 291 (Fiat Sedici 2.0 JTD 135HP 2010)
  • 0 281 016 223 (Fiat Ducato 2.3 JTD 127HP 2010)
  • 0 281 015 951 (Alfa Romeo Giulietta 2.0 JTD 140HP 2010)
  • 0 281 015 575 (Fiat Linea 1.6 JTD 105HP 2006)
  • 0 281 015 573 (Alfa Romeo MiTo 1.6 JTD 120HP 2009)
  • 0 281 013 675 (Fiat Doblo 1.9 JTD 120HP 2008)
  • 0 281 013 580 (Fiat Bravo 1.9 JTD 150HP 2008)
  • 0 281 013 579 (Alfa Romeo 159 2.4 JTD 200HP 2008)
  • 0 281 012 992 (Fiat Sedici 1.9 JTD 120HP 2009)
  • 0 281 012 862 (Alfa Romeo 147 1.9 JTD 120HP 2005)
  • 0 281 012 294 (Fiat Multipla 1.9 JTD 120HP 2004)
  • 0 281 012 149 (Fiat Croma 1.9 JTD 150HP 2005)
  • 0 281 B04 453-02 (Fiat Doblo 1.6 JTD 105HP 2012)
  • 0 281 B03 940-05 (Lancia Delta 1.9 JTD 190HP 2008)
  • 0 281 B02 539 (Fiat Grande Punto 1.3 JTD 120HP 2007)

BOSCH ME7.9.10

  • Alfa Romeo Giulietta 1.4 TB 120HP 2010-
  • Alfa Romeo MiTo 1.4 78HP 2008-2018
  • Alfa Romeo MiTo 1.4 70HP 2008-2018
  • Alfa Romeo MiTo 1.4 TB 155HP 2008-2018
  • Chrysler Delta 1.4 T-jet 120HP 2008-2014
  • Fiat 500 1.4 100HP 2007-
  • Fiat 500 Abarth 1.4 T-Jet 135HP 2008-
  • Fiat 500 Abarth Essesse 1.4 160HP 2008-
  • Fiat 500 Abarth Tributo Ferrari 1.4 180HP 2008-
  • Fiat 500 Abarth Turbo 1.4 135HP 2008
  • Fiat Bravo 1.4 T-Jet 120HP 2007-2014
  • Fiat Doblo 1.4 120HP 2010-2014
  • Fiat Grande Punto Abarth 1.4 165HP 2005-2010
  • Fiat Grande Punto 1.4 T-Jet 120HP 2005-2010
  • Lancia Delta 1.4 T-Jet 120HP 2008-2014

ECU numbers

  • 0 261 201 687 (Fiat Bravo 1.4 T-Jet 120HP 2008)
  • 0 261 201 688 (Fiat Bravo 1.4 T-Jet 120HP 2007)
  • 0 261 201 756 (Fiat 500 Abarth 1.4 T-Jet 135HP 2010)
  • 0 261 201 757 (Fiat Bravo 1.4 T-Jet 120HP 2010)
  • 0 261 201 759 (Fiat 500 1.4 100HP 2009)
  • 0 261 S04 407 (Alfa Romeo MiTo 1.4 78HP 2008)
  • 0 261 S04 409 (Alfa Romeo MiTo 1.4 Turbo 155HP 2009)
  • 0 261 S04 410 (Lancia Delta 1.4 T-Jet 150HP 2009)
  • 0 261 S04 657 (Fiat Grande Punto 1.4 T-Jet 120HP 2009)
  • 0 261 S04 660 (Fiat Grande Punto 1.4 T-Jet 120HP 2007)
  • 0 261 S05 118 (Alfa Romeo Giulietta 1.4 TB 120HP 2012)
  • 0 261 S05 792 (Fiat Doblo Cargo 1.4 120HP 2010-2011)
  • 0 261 S05 818 (Fiat 500 1.4 100HP 2012)
  • 0 261 S05 872 (Fiat Bravo 1.4 T-Jet 120HP 2011)
  • 0 261 S06 460 (Lancia Delta 1.4 T-Jet 120HP 2008)
  • 0 261 S06 518 (Fiat 500 1.4 T-Jet 140HP 2008)
  • 0 261 S07 416 (Fiat Doblo 1.4 120HP 2009)

Bosch MED7.6.1

  • Alfa Romeo 159 2.2 JTS 185HP 2005-2011
  • Alfa Romeo 159 1.9 JTS 160HP 2005-2011

ECU numbers

  • 0 261 S01 071 (Alfa Romeo 159 1.9 JTS 160HP 2010)
  • 0 261 S01 068 (Alfa Romeo 159 2.2 JTS 185HP 2010)
  • 0 261 S01 065 (Alfa Romeo 159 2.2 JTS 185HP 2008)
  • 0 261 S01 054 (Alfa Romeo 159 2.2 JTS 185HP 2006)
  • 0 261 S01 045 (Alfa Romeo 159 2.2 JTS 185HP 2007)
  • 0 261 S01 041 (Alfa Romeo 159 1.9 JTS 160HP 2008)
  • 0 261 S01 034 (Alfa Romeo 159 2.2 JTS 185HP 2009)

Magneti Marelli 9GF

  • Chrysler Ypsilon 1.2 69HP 2011-
  • Fiat 500 1.2 69HP 2007-
  • Fiat Grande Punto 1.2 65HP 2005-
  • Fiat Panda 1.2 69HP 2011-
  • Ford KA 1.2 69HP 2008-2016
  • Lancia Ypsilon 1.2 69HP 2011-

ECU numbers

  • 9GF.T6 (Fiat 500 1.2 69HP 2011)
  • 9GF.T7 (Fiat 500 1.2 69HP 2014)
  • 9GF.T9 (Fiat 500 1.2 69HP 2013)
  • 9GF.TE (Fiat Panda 1.2 69HP 2015)
  • 9GF.TK (Ford KA 1.2 69HP 2014)

Magneti Marelli 8GMC

  • Fiat 500 1.4 100HP 2007-

ECU numbers

  • 8GMC.C1 (Fiat 500 1.4 100HP 2012)

Magneti Marelli 8GMF

  • Alfa Romeo Giulietta 1.4 TB MultiAir 170HP 2010-
  • Alfa Romeo MiTo 1.4 MultiAir 105HP 2008-2018
  • Alfa Romeo MiTo 1.4 TB 155HP 2008-2018
  • Fiat Bravo 1.4 T-Jet 120HP 2007-2014
  • Fiat Grande Punto 1.4 T-Jet 120HP 2005-2010
  • Fiat Punto EVO 1.4 105HP 2009-2012

ECU numbers

  • 8GMF.01 (Fiat Grande Punto 1.4 T-Jet 120HP 2009)
  • 8GMF.AA (Alfa Romeo MiTo 1.4 MultiAir 105HP 2009)
  • 8GMF.A3 (Alfa Romeo MiTo 1.4 MultiAir 105HP 2016)
  • 8GMF.A4 (Alfa Romeo MiTo 1.4 TB 155HP 2017)
  • 8GMF.A5 (Alfa Romeo MiTo 1.4 MultiAir 105HP 2014)
  • 8GMF.A6 (Fiat Punto EVO 1.4 105HP 2009)
  • 8GMF.A9 (Alfa Romeo Giulietta 1.4 TB MultiAir 170HP 2015)

Magneti Marelli 8GSW

  • Fiat 500 0.9 85HP TwinAir Turbo 2007-
  • Fiat Panda 0.9 65HP TwinAir 2012-
  • Fiat Panda 0.9 85HP TwinAir Turbo 2012-
  • Fiat Punto 0.9 85HP TwinAir 2012-2018
  • Fiat 500 0.9 8V 85HP TwinAir Turbo 2007-
  • Fiat Panda 0.9 65HP TwinAir 2012-
  • Fiat Panda 0.9 85HP TwinAir Turbo 2012-
  • Fiat Punto 0.9 85HP TwinAir 2012-2018

ECU numbers

  • 8GSW.CA (Fiat 500 0.9 TwinAir Turbo 85HP 2016)
  • 8GSW.E9 (Fiat Punto 0.9 85HP TwinAir 2013)
  • 8GSW.E2 (Fiat 500 0.9 85HP TwinAir Turbo 2013)
  • 8GSW.EA (Fiat 500 0.9 85HP TwinAir Turbo 2017)
  • 8GSW.ED (Fiat Panda 4X4 0.9 65HP TwinAir 2014)
  • 8GSW.EM (Fiat Panda 0.9 85HP TwinAir Turbo 2016)
  • 8GSW.H7 (Fiat Panda 0.9 65HP TwinAir 2012)
  • 8GSW.H2 (Fiat Panda 0.9 65HP TwinAir 2014)
  • 8GSW.MP (Fiat Panda 0.9 65HP TwinAir 2015)

Magneti Marelli IAW 5NF

  • Fiat Stilo 1.6 105HP 2001-2008
  • Fiat Doblo 1.6 103HP 2000-2009
  • Fiat Panda 1.2 69HP 2009-2012
  • Fiat Panda 1.2 60HP 2003-2009
  • Fiat Punto II 1.2 60HP 1999-2010

ECU numbers

  • IAW 5NF.PS (Fiat Punto II 1.2 60HP 2003)
  • IAW 5NF.T9 (Fiat Stilo 1.6 105HP 2003)
  • IAW 5NF.T4 (Fiat Doblo 1.6 103HP 2007)
  • IAW 5NF.T2 (Fiat Doblo 1.6 103HP 2005)
  • IAW 5NF.T1 (Fiat Stilo 1.6 105HP 2003)
  • IAW 5NF.TD (Fiat Doblo 1.6 103HP 2009)
  • IAW 5NF.TE (Fiat Doblo 1.6 103HP 2003)
  • IAW 5NF.S9 (Fiat Panda 1.2 69HP 2010)
  • IAW 5NF.S8 (Fiat Panda 1.2 60HP 2007)
  • IAW 5NF.S7 (Fiat Panda 1.2 60HP 2009)
  • IAW 5NF.S5 (Fiat Panda 1.2 60HP 2008)

Magneti Marelli IAW 5SF

  • Fiat 500 1.2 69HP 2007-
  • Fiat Grande Punto 1.4 T-Jet 120HP 2005-2010
  • Fiat Panda 1.2 69HP 2012-
  • Fiat Punto EVO 1.4 105HP 2009-2012
  • Ford KA 1.2 69HP 2008-2016

ECU numbers

  • IAW 5SF9.A8 (Fiat Grande Punto 1.4 T-Jet 120HP 2007)
  • IAW 5SF8.M4 (Fiat 500 1.2 69HP 2014)
  • IAW 5SF8.MR (Fiat 500 1.2 69HP 2007)
  • IAW 5SF8.NS (Fiat 500 1.2 69HP 2009)
  • IAW 5SF8.P2 (Fiat Grande Punto 1.4 T-Jet 120HP 2009)
  • IAW 5SF3.M2 (Fiat Grande Punto 1.4 T-Jet 120HP 2007)
  • IAW 5SF3.M1 (Fiat Grande Punto 1.4 T-Jet 120HP 2006)

Magneti Marelli MJD 9DF

  • Fiat 500 1.3 75HP MultiJet 2007-
  • Fiat Ducato 2.3 120HP MultiJet 2006-
  • Fiat Panda 4x4 1.3 75HP MultiJet 2009-
  • Fiat Qubo 1.3 75HP MultiJet 2007-
  • Fiat Fiorino 1.3 95HP MultiJet 2007-
  • Lancia Ypsilon 1.3 75HP MultiJet 2003-2011

ECU numbers

  • MJD 9DF.A1 (Fiat Ducato 2.3 120HP MultiJet 2007)
  • MJD 9DF.B1 (Fiat 500 1.3 75HP MultiJet 2009)
  • MJD 9DF.F3 (Fiat Fiorino 1.3 MultiJet 95HP 2010)
  • MJD 9DF.X1 (Fiat 500L 1.3 95HP MultiJet 2009)
  • MJD 9DF.Y1 (Lancia Ypsilon 1.3 75HP MultiJet 2009)

Magneti Marelli MJD 8F2

  • Fiat 500 1.3 75HP MultiJet 2007-
  • Fiat Panda 1.3 75HP MultiJet 2009-
  • Fiat Grande Punto 1.3 JTD 75HP 2005-2009
  • Fiat Idea 1.3 JTD 70HP MultiJet 2003-2010
  • Lancia Ypsilon 1.3 75HP MultiJet 2003-2011

ECU numbers

  • MJD 8F2.B2 (Fiat Panda 1.3 75HP MultiJet 2011)
  • MJD 8F2.G2 (Fiat Grande Punto 1.3 JTD 75HP 2009)

Magneti Marelli MJD 6F3

  • Fiat 500 1.3 75HP MultiJet 2007-
  • Fiat Doblo 1.3 75HP MultiJet 2006-2009
  • Fiat Qubo 1.3 75HP MultiJet 2007-
  • Fiat Fiorino 1.3 75HP MultiJet 2007-
  • Fiat Grande Punto 1.3 75HP MultiJet 2005-2009

ECU numbers

  • MJD 6F3.B1 (Fiat 500 1.3 75HP MultiJet 2009)
  • MJD 6F3.D4 (Fiat Doblo 1.3 75HP MultiJet 2007)
  • MJD 6F3.H1 (Fiat Fiorino 1.3 75HP MultiJet 2008)
  • MJD 6F3.HA (Fiat Qubo 1.3 75HP MultiJet 2009)
  • MJD 6F3.P7 (Fiat Grande Punto 1.3 75HP MultiJet 2007)
  • MJD 6F3.P5 (Fiat Grande Punto 1.3 75HP MultiJet 2006)
  • MJD 6F3.PI (Fiat Grande Punto 1.3 75HP MultiJet 2009)
  • MJD 6F3.PL (Fiat Grande Punto 1.3 75HP MultiJet 2009)
  • MJD 6F3.Z7 (Fiat Grande Punto 1.3 75HP MultiJet 2008)

Visteon DCU 102



  • Fiat Ducato 2.2 JTD 100HP 2007-

ECU numbers

  • Visteon DCU102 (Fiat Ducato 2.2 JTD 100HP 2007)
