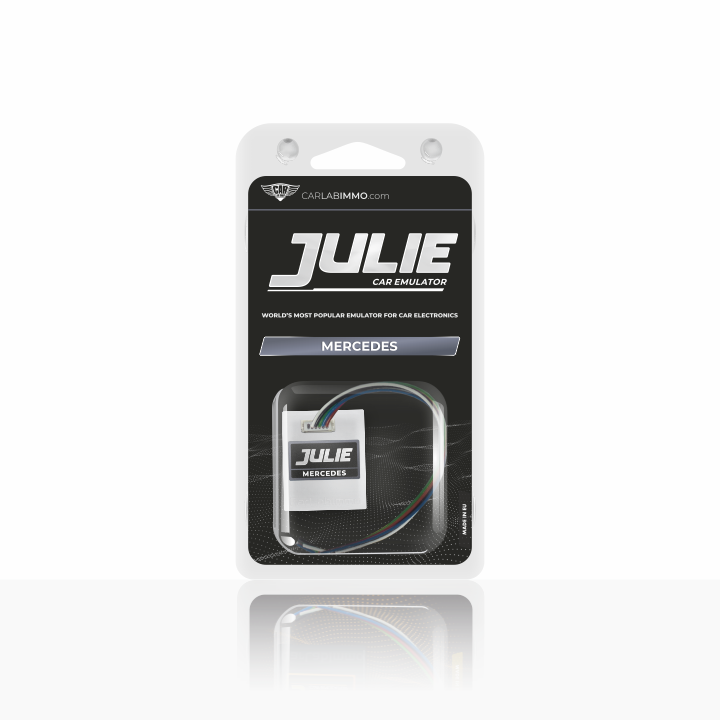

Julie MERCEDES | IMMO OFF Emulator
Julie Mercedes Emulator is dedicated to replacing immobiliser signal in Mercedes vehicles.

It supports the following ECUs with CAN transmission:

Brands: Mercedes

Bosch

  • Bosch CR2.x
  • Bosch CR1.7
  • Bosch CR1.2
  • Bosch M3.4.4
  • Bosch ME2.x
  • Bosch ME1.x
  • Bosch MSA 25.2 / 15.1



Lucas

  • Lucas ED013



VDO

  • VDO MSM
  • VDO MSE (white sockets)
  • VDO MSE (black sockets)
  • VDO MSE (yellow sockets)
Julie Mercedes | IMMO OFF Emulator

Bosch CR2.x

  • Mercedes Sprinter W905 (616CDI) 2.7 CDI 156HP 2001-2006
  • Mercedes Sprinter W904 (313CDI) 2.2 CDI 129HP 1998-2006
  • Mercedes Sprinter W903 (208CDI) 2.2 CDI 82HP 1998-2006
  • Mercedes Sprinter W902 (311CDI) 2.2 CDI 109HP 1998-2006
  • Mercedes Sprinter W901 (411CDI) 2.2 CDI 129HP 1998-2006

ECU numbers

  • 0 281 011 796 / A611 153 14 91 (Mercedes Sprinter (W904) 2.2 CDI 129HP 2002)
  • 0 281 011 753 / A612 153 73 79 (Mercedes Sprinter (W905) 2.7 CDI 156HP 2001)
  • 0 281 011 752 / A612 153 72 79 (Mercedes Sprinter (W905) 2.7 CDI 156HP 2005)
  • 0 281 011 750 / A612 153 70 79 (Mercedes Sprinter (W905) 2.7 CDI 156HP 2006)
  • 0 281 011 747 / A611 153 11 91 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2005)
  • 0 281 011 746 / A611 153 10 91 (Mercedes Sprinter (W901) 2.2 CDI 129HP 2006)
  • 0 281 011 745 / A611 153 09 91 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2005)
  • 0 281 011 742 / A611 153 06 91 (Mercedes Sprinter (W904) 2.2 CDI 129HP 2004)
  • 0 281 011 484 / A611 153 05 91 (Mercedes Sprinter (W901) 2.2 CDI 129HP 2003)
  • 0 281 011 483 / A611 153 04 91 (Mercedes Sprinter (W901) 2.2 CDI 129HP 2003)
  • 0 281 011 408 / A612 153 63 79 (Mercedes ML (W163) 2.7 CDI 163HP 2003)
  • 0 281 011 407 / A612 153 62 79 (Mercedes ML (W163) 2.7 CDI 163HP 2004)
  • 0 281 011 059 / A611 153 00 91 (Mercedes Sprinter (W904) 2.2 CDI 129HP 2003)
  • 0 281 010 970 / A000 153 73 79 (Mercedes Sprinter (W903) 2.2 CDI 82HP 2002)
  • 0 281 010 969 / A612 153 47 79 (Mercedes Sprinter (W905) 2.7 CDI 156HP 2004)
  • 0 281 010 921 / A000 153 61 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2005)
  • 0 281 010 920 / A000 153 60 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2005)
  • 0 281 010 827 / A612 153 35 79 (Mercedes Sprinter (W905) 2.7 CDI 156HP 2001)
  • 0 281 010 825 / A000 153 41 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2001)
  • 0 281 010 824 / A000 153 40 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2001)
  • 0 281 010 796 / A612 153 32 79 (Mercedes ML (W163) 2.7 CDI 163HP 2002)
  • 0 281 010 618 / A612 153 23 79 (Mercedes Sprinter (W905) 2.7 CDI 156HP 2001)
  • 0 281 010 617 / A611 153 63 79 (Mercedes Sprinter (W904) 2.2 CDI 129HP 2001)
  • 0 281 010 616 / A611 153 62 79 (Mercedes Sprinter (W904) 2.2 CDI 129HP 2001)
  • 0 281 010 615 / A611 153 61 79 (Mercedes Sprinter (W901) 2.2 CDI 129HP 2000)
  • 0 281 010 546 / A612 153 17 79 (Mercedes ML (W163) 2.7 CDI 163HP 2001)
  • 0 281 010 525 / A611 153 38 79 (Mercedes Sprinter (W903) 2.2 CDI 82HP 2000)
  • 0 281 010 524 / A611 153 37 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2000)
  • 0 281 010 523 / A611 153 36 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2002)
  • 0 281 010 521 / A611 153 35 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2001)
  • 0 281 010 520 / A611 153 34 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2000)
  • 0 281 010 519 / A611 153 33 79 (Mercedes Sprinter (W902) 2.2 CDI 109HP 2001)
  • 0 281 010 423 / A611 153 14 79 (Mercedes Sprinter (W901) 2.2 CDI 129HP 2000)
  • 0 281 010 283 / A024 545 32 32 (Mercedes ML (W163) 2.7 CDI 163HP 2002)

Bosch CR1.7

  • Mercedes Vito (W638) 2.2 CDI 122HP 1999-2003
  • Mercedes Vito (W638) 2.2 CDI 102HP 1999-2003
  • Mercedes Vito (W638) 2.2 CDI 82HP 1999-2003

ECU numbers

  • 0 281 011 067 / A611 153 03 91 (Mercedes Vito (W638) 2.2 CDI 82HP 2002)
  • 0 281 011 066 / A611 153 02 91 (Mercedes Vito (W638) 2.2 CDI 102HP 2003)
  • 0 281 010 927 / A000 153 59 79 (Mercedes Vito (W638) 2.2 CDI 102HP 2003)
  • 0 281 010 605 / A611 153 71 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2001)
  • 0 281 010 604 / A611 153 70 79 (Mercedes Vito (W638) 2.2 CDI 82HP 20011)
  • 0 281 010 604 / A611 153 70 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2001)
  • 0 281 010 603 / A611 153 69 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2001)
  • 0 281 010 602 / A611 153 68 79 (Mercedes Vito (W638) 2.2 CDI 102HP 2001)
  • 0 281 010 601 / A611 153 67 79 (Mercedes Vito (W638) 2.2 CDI 82HP 2001)
  • 0 281 010 598 / A611 153 64 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2001)
  • 0 281 010 436 / A611 153 00 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2000)
  • 0 281 010 433 / A000 153 09 79 (Mercedes Vito (W638) 2.2 CDI 102HP 2001)
  • 0 281 010 431 / A000 153 11 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2001)
  • 0 281 010 431 / A000 153 11 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2000)
  • 0 281 010 430 / A611 153 08 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2000)
  • 0 281 010 428 / A611 153 06 79 (Mercedes Vito (W638) 2.2 CDI 102HP 2000)
  • 0 281 010 236 / A000 153 07 79 (Mercedes Vito (W638) 2.2 CDI 82HP 2000)
  • 0 281 010 236 / A000 153 07 79 (Mercedes Vito (W638) 2.2 CDI 102HP 2000)
  • 0 281 010 235 / A000 153 06 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2000)
  • 0 281 010 234 / A000 153 05 79 (Mercedes Vito (W638) 2.2 CDI 102HP 2000)
  • 0 281 010 233 / A000 153 04 79 (Mercedes Vito (W638) 2.2 CDI 122HP 2000)
  • 0 281 010 232 / A000 153 03 79 (Mercedes Vito (W638) 2.2 CDI 82HP 2000)
  • 0 281 010 232 / A000 153 03 79 (Mercedes Vito (W638) 2.2 CDI 102HP 1999)
  • 0 281 010 231 / A000 153 02 79 (Mercedes Vito (W638) 2.2 CDI 122HP 1999)
  • 0 281 010 042 / A026 545 64 32 (Mercedes Vito (W638) 2.2 CDI 102HP 1999)
  • 0 281 001 988 / A024 545 75 32 Mercedes Vito (W638) 2.2 CDI 102HP 1999)
  • 0 281 001 987 / A024 545 74 32 (Mercedes Vito (W638) 2.2 CDI 122HP 1999)
  • 0 281 001 986 / A024 545 73 32 (Mercedes Vito (W638) 2.2 CDI 82HP 1999)
  • 0 281 001 985 / A024 545 26 32 (Mercedes Vito (W638) 2.2 CDI 82HP 1999)
  • 0 281 001 984 / A023 545 39 32 (Mercedes Vito (W638) 2.2 CDI 122HP 1999)

Bosch CR1.2

  • Mercedes A-Class (W168) 1.7 CDI 95HP 2001-2004
  • Mercedes A-Class (W168) 1.7 CDI 90HP 1998-2001
  • Mercedes A-Class (W168) 1.7 CDI 75HP 2001-2004
  • Mercedes A-Class (W168) 1.7 CDI 60HP 1998-2001

ECU numbers

  • 0 281 011 151 / A668 153 08 79 (Mercedes A-Class (W168) 1.7 CDI 75HP 2003)
  • 0 281 010 793 / A668 153 02 79 (Mercedes A-Class (W168) 1.7 CDI 95HP 2003)
  • 0 281 010 427 / A000 153 32 79 (Mercedes A-Class (W168) 1.7 CDI 90HP 2000)
  • 0 281 010 426 / A000 153 31 79 (Mercedes A-Class (W168) 1.7 CDI 95HP 2000)
  • 0 281 010 118 / A028 545 19 32 (Mercedes A-Class (W168) 1.7 CDI 95HP 2001)
  • 0 281 010 040 / A027 545 97 32 (Mercedes A-Class (W168) 1.7 CDI 60HP 1999)
  • 0 281 010 039 / A027 545 96 32 (Mercedes A-Class (W168) 1.7 CDI 75HP 2001)
  • 0 281 001 991 / A027 545 53 32 (Mercedes A-Class (W168) 1.7 CDI 95HP 2001)
  • 0 281 001 990 / A027 545 52 32 (Mercedes A-Class (W168) 1.7 CDI 95HP 2001)

BOSCH M3.4.4

  • Mercedes C-class W202 2.3 150HP 1993-2001
  • Mercedes C-class W202 2.2 150HP 1993-2001
  • Mercedes C-class W202 2.0 136HP 1993-2001
  • Mercedes E-class W210 2.8 193HP 1995-2003
  • Mercedes E-class W210 2.0 136HP 1995-2003
  • Mercedes S-class W140 3.2 23 HP 1993-1998
  • Mercedes W124 2.2 150HP 1992-1997

ECU numbers

  • 0 261 204 328 (Mercedes C-class W202 2.0 136HP 1995)
  • 0 261 203 954 (Mercedes S-class W140 3.2 231HP 1992)
  • 0 261 203 790 (Mercedes C-class W202 2.2 150HP 1997)
  • 0 261 203 703 (Mercedes C-class W202 2.3 150HP 1995)
  • 0 261 203 621 (Mercedes E-class W210 2.0 136HP 1996)
  • 0 261 203 619 (Mercedes E-class W210 2.8 193HP 1997)
  • 0 261 203 536 (Mercedes S-class W140 3.2 231HP 1995)
  • 0 261 203 532 (Mercedes S-class W140 3.2 231HP 1998)
  • 0 261 203 490 (Mercedes E-class W210 2.8 193HP 1999)
  • 0 261 203 242 (Mercedes W124 3.2 220HP 1995)
  • 0 261 203 230 (Mercedes C-class W202 2.2 150HP 1998)

Bosch ME2.x

  • Mercedes C-Class (W202) 2.0 136HP 1993-2001
  • Mercedes CLK (W208) 3.2 218HP 1997-2003
  • Mercedes CLK (W208) 2.3 Kompressor 197HP 2000-2003
  • Mercedes CLK (W208) 2.0 136HP 1997-2000
  • Mercedes E-Class (W210) 5.5 AMG 354HP 1998-2002
  • Mercedes E-Class (W210) 3.2 224HP 1997-2002
  • Mercedes E-Class (W210) 2.4 170HP 1997-2000
  • Mercedes E-Class (W210) 2.0 136HP 1995-2000
  • Mercedes ML (W163) 5.0 292HP 1997-2005
  • Mercedes ML (W163) 4.3 272HP 1997-2005
  • Mercedes ML (W163) 3.2 218HP 1997-2005
  • Mercedes S-Class (W220) 5.0 306HP 1998-2005
  • Mercedes SL (R129) 5.0 306HP 1996-2001)
  • Mercedes SLK (R170) 2.3 Kompressor 197HP 2000-2004
  • Mercedes SLK (R170) 2.0 136HP 1996-2000
  • Mercedes Sprinter (W901) 2.3 143HP 1995-2006

ECU numbers

  • 0 261 207 707 / A112 153 22 79 (Mercedes ML (W163) 3.2 218HP 2000)
  • 0 261 207 279 / A031 545 43 32 (Mercedes ML (W163) 5.0 292HP 2001)
  • 0 261 207 151 / A113 153 03 79 (Mercedes SL (R129) 5.0 306HP 2001)
  • 0 261 207 150 / A112 153 04 79 (Mercedes ML (W163) 3.2 218HP 1997)
  • 0 261 207 128 / A111 153 04 79 (Mercedes SLK (R170) 2.3 Kompressor 197HP 2001)
  • 0 261 207 076 / A111 153 01 79 (Mercedes Sprinter (W901) 2.3 143HP 1999)
  • 0 261 206 720 / A029 545 34 32 (Mercedes ML (W163) 4.3 272HP 2005)
  • 0 261 206 568 / A028 545 71 32 (Mercedes E-Class (W210) 2.0 136HP 2000)
  • 0 261 206 455 / A028 545 42 32 (Mercedes CLK (W208) 2.0 136HP 2000)
  • 0 261 206 454 / A028 545 41 32 (Mercedes E-Class (W210) 2.0 136HP 1999)
  • 0 261 206 308 / A026 545 13 32 (Mercedes CLK (W208) 2.3 Kompressor 197HP 2000)
  • 0 261 206 303 / A026 545 69 32 (Mercedes ML (W163) 4.3 272HP 2004)
  • 0 261 206 302 / A026 545 68 32 (Mercedes S-Class (W220) 5.0 306HP 2000)
  • 0 261 206 300 / A026 545 66 32 (Mercedes ML (W163) 3.2 218HP 2001)
  • 0 261 206 299 / A026 545 65 32 (Mercedes E-Class (W210) 3.2 224HP 1998)
  • 0 261 206 220 / A027 545 36 32 (Mercedes CLK (W208) 2.0 136HP 1999)
  • 0 261 206 052 / A025 545 85 32 (Mercedes CLK (W208) 3.2 218HP 1998)
  • 0 261 206 454 / A028 545 41 32(Mercedes SLK (R170) 2.0 136HP 2000)
  • 0 261 204 918 / A024 545 59 32 (Mercedes ML (W163) 3.2 218HP 2003)
  • 0 261 204 915 / A023 545 83 32 (Mercedes CLK (W208) 2.3 Kompressor 193HP 1999)
  • 0 261 204 883 / A023 545 84 32 (Mercedes C-Class (W202) 2.0 136HP 2000)
  • 0 261 204 857 / A023 545 69 32 (Mercedes E-Class (W210) 5.5 AMG 354HP 1999)
  • 0 261 204 783 / A023 545 71 32 (Mercedes ML (W163) 3.2 218HP 1999)
  • 0 261 204 780 / A023 545 97 32 (Mercedes ML (W163) 3.2 218HP 2001)
  • 0 261 204 779 / A023 545 96 32 (Mercedes E-Class (W210) 2.4 170HP 1998)
  • 0 261 204 747 / A023 545 77 32 (Mercedes SLK (R170) 2.3 Kompressor 197HP 2003)
  • 0 261 204 746 / A023 545 41 32 (Mercedes CLK (W208) 2.3 Kompressor 197HP 2000)
  • 0 261 204 116 / A020 545 11 32 (Mercedes E-Class (W210) 3.2 224HP 1998)
  • 0 261 201 918 / A023 545 97 32 (Mercedes ML (W163) 3.2 218HP 2001)

Bosch ME1.x

  • Mercedes CL (C140) 6.0 394HP 1993-1998
  • Mercedes CL (C140) 4.2 279HP 1993-1998
  • Mercedes E-Class (W210) 5.0 AMG 347HP 1996-1997
  • Mercedes E-Class (W210) 4.2 279HP 1996-1998
  • Mercedes S-Class (W140) 6.0 394HP 1993-1998
  • Mercedes S-Class (W140) 4.2 279HP 1993-1998
  • Mercedes SL (R129) 6.0 394HP 1996-2001

ECU numbers

  • 0 261 204 525 / A021 545 25 32 (Mercedes CL (C140) 6.0 394HP 1998)
  • 0 261 204 524 / A021 545 25 32 (Mercedes SL (R129) 6.0 394HP 1998)
  • 0 261 204 522 / A021 545 24 32 (Mercedes SL (R129) 5.0 319HP 2000)
  • 0 261 204 520 / A021 545 23 32 (Mercedes E-Class (W210) 4.2 279HP 1997)
  • 0 261 204 327 / A022 545 09 32 (Mercedes SL (R129) 5.0 319HP 1997)
  • 0 261 204 325 / A021 545 22 32 (Mercedes CL (C140) 6.0 394HP 1996)
  • 0 261 204 324 / A021 545 21 32 (Mercedes SL (R129) 5.0 319HP 2001)
  • 0 261 204 323 / A021 545 21 32 (Mercedes SL (R129) 5.0 319HP 1997)
  • 0 261 204 322 / A021 545 20 32 (Mercedes CL (C140) 4.2 279HP 1995)
  • 0 261 204 321 / A021 54 520 32 (Mercedes E-Class (W210) 4.2 279HP 2003)
  • 0 261 204 289 / A021 545 44 32 (Mercedes SL (R129) 5.0 319HP 1997)
  • 0 261 204 288 / A021 545 4332 (Mercedes S-Class (W140) 4.2 279HP 1996)
  • 0 261 204 141 / A020 545 5032 (Mercedes SL (R129) 5.0 319HP 1997)
  • 0 261 204 140 / A020 545 50 32 (Mercedes SL (R129) 5.0 319HP 1999)
  • 0 261 204 138 / A020 545 49 32 (Mercedes CL (C140) 4.2 279HP 1998)
  • 0 261 204 080 / A022 545 95 32 (Mercedes E-Class (W210) 5.0 AMG 347HP 1997)
  • 0 261 203 578 / A020 545 22 32 (Mercedes S-Class (W140) 6.0 394HP 1996)
  • 0 261 203 577 / A017 545 87 32 (Mercedes SL (R129) 5.0 319HP 1999)
  • 0 261 203 576 / A017 545 87 32 (Mercedes SL (R129) 5.0 319HP 2001)

Bosch MSA25.2 / MSA15.1

  • Mercedes C-Class (W202) 2.5 TD 150HP 1995-2001
  • Mercedes E-Class (W210) 3.0 TD 177HP 1997-1999
  • Mercedes E-Class (W210) 2.9 TD 129HP 1996-1999
  • Mercedes Sprinter (W905) 2.9 TD 122HP 1996-2000
  • Mercedes Sprinter (W904) 2.9 TD 122HP 1996-2000
  • Mercedes Sprinter (W903) 2.9 TD 122HP 1996-2000
  • Mercedes Sprinter (W902) 2.9 TD 122HP 1996-2000
  • Mercedes Sprinter (W901) 2.9 TD 122HP 1996-2000

ECU numbers

  • 0 281 001 983 / A027 545 51 32 (Mercedes Sprinter (W902) 2.9 TD 122HP 1999)
  • 0 281 001 982 / A027 545 50 32 (Mercedes Sprinter (W901) 2.9 TD 122HP 1999)
  • 0 281 001 922 / A025 545 51 32 (Mercedes Sprinter (W903) 2.9 TD 122HP 1999)
  • 0 281 001 880 / A025 545 55 32 (Mercedes E-Class (W210) 3.0 TD 177HP 1999)
  • 0 281 001 786 / A022 545 31 32 (Mercedes Sprinter (W904) 2.9 TD 122HP 1997)
  • 0 281 001 785 / A022 545 30 32 (Mercedes Sprinter (W905) 2.9 TD 122HP 1999)
  • 0 281 001 754 / A024 545 11 32 (Mercedes E-Class (W210) 3.0 TD 177HP 1997)
  • 0 281 001 753 / A024 545 11 32 (Mercedes E-Class (W210) 3.0 TD 177HP 1996)
  • 0 281 001 714 / A022 545 96 32 (Mercedes C-Class (W202) 2.5 TD 150HP 1997)
  • 0 281 001 684 / A023 545 09 32 (Mercedes Sprinter (W905) 2.9 TD 122HP 1999)
  • 0 281 001 646 / A022 545 35 32 (Mercedes Sprinter (W903) 2.9 TD 122HP 1998)
  • 0 281 001 644 / A022 545 343 2 (Mercedes Sprinter (W901) 2.9 TD 122HP 2000)
  • 0 281 001 624 / A017 545 92 32 (Mercedes E-Class (W210) 3.0 TD 177HP 1997)
  • 0 281 001 621 / A022 545 39 32 (Mercedes E-Class (W210) 3.0 TD 177HP 1997)
  • 0 281 001 620 / A022 545 39 32 (Mercedes E-Class (W210) 2.9 TD 129HP 1996)
  • 0 281 001 510 / A021 545 59 32 (Mercedes Sprinter (W901) 2.9 TD 122HP 2000)
  • 0 281 001 506 / A021 545 57 32 (Mercedes Sprinter (W903) 2.9 TD 122HP 1998)
  • 0 281 001 504 / A021 545 56 32 (Mercedes Sprinter (W904) 2.9 TD 122HP 1997)
  • 0 281 001 502 / A021 545 55 32 (Mercedes Sprinter (W901) 2.9 TD 122HP 2000)
  • 0 281 001 496 / A019 545 67 32 (Mercedes Sprinter (W904) 2.9 TD 122HP 1997)
  • 0 281 001 494 / A018 545 30 32 (Mercedes E-Class (W210) 2.9 TD 129HP 1997)
  • 0 281 001 463 / A018 545 34 32 (Mercedes C-Class (W202) 2.5 TD 150HP 1997)
  • 0 281 001 457 / A018 545 32 32 (Mercedes E-Class (W210) 3.0 TD 177HP 1997)
  • 0 281 001 403 / A019 545 63 32 (Mercedes Sprinter (W904) 2.9 TD 122HP 1997)
  • 0 281 001 360 / A018 545 19 32 (Mercedes C-Class (W202) 2.5 TD 150HP 1998)
  • 0 281 001 283 / A018 545 26 32 (Mercedes E-Class (W210) 2.9 TD 129HP 1996)
  • 0 281 001 230 / A017 545 90 32 (Mercedes E-Class (W210) 3.0 TD 177HP 1997)
  • 0 281 001 228 / A016 545 08 32 (Mercedes C-Class (W202) 2.5 TD 150HP 1996)
  • 0 281 001 226 / A016 545 07 32 (Mercedes C-Class (W202) 2.5 TD 150HP 1995)

Lucas ED013

  • Mercedes E-Class (W210) 2.2 95HP 1995-1998

ECU numbers

  • A 022 545 54 32 (Mercedes E-Class (W210) 2.2 95HP 1996)
  • A 019 545 94 32 (Mercedes E-Class (W210) 2.2 95HP 1997)

VDO MSM

  • Mercedes A-Class (W168) 1.6 102HP 1997-2004

ECU numbers

  • A 029 545 36 32 [1] (Mercedes A-Class (W168) 1.6 102HP 1999)
  • A 025 545 41 32 [2] (Mercedes A-Class (W168) 1.6 102HP 1999)
  • A 028 545 38 32 [1] (Mercedes A-Class (W168) 1.6 102HP 1999)
  • A 166 150 03 79 [0] (Mercedes A-Class (W168) 1.4 82HP 1999)
  • A 166 150 08 79 [5] (Mercedes A-Class (W168) 1.4 82HP 1999)
  • A 166 150 09 79 [4] (Mercedes A-Class (W168) 1.4 82HP 1999)
  • A 166 150 01 79 [2] (Mercedes A-Class (W168) 1.4 82HP 1999)
  • A 026 545 05 32 [4] (Mercedes A-Class (W168) 1.6 102HP 1999)
  • A 029 545 37 32 [0] (Mercedes A-Class (W168) 1.6 102HP 1999)
  • A 025 545 30 32 [5] (Mercedes A-Class (W168) 1.6 102HP 1999)
  • A 023 545 02 32 [4] (Mercedes A-Class (W168) 1.4 82HP 1999)
  • A 027 545 74 32 [8] (Mercedes A-Class (W168) 1.6 102HP 1999)
  • A 025 545 41 32 [2] (Mercedes A-Class (W168) 1.6 102HP 1997)
  • A 026 545 05 32 [4] (Mercedes A-Class (W168) 1.6 102HP 1998)

VDO MSE (White sockets)

  • Mercedes C-Class W202 2.8 197HP 1993-2001
  • Mercedes C-Class W202 2.0 136HP 1993-2001
  • Mercedes C-Class W202 1.8 122HP 1993-2001
  • Mercedes CLK W208 2.0 136HP 1997-2003
  • Mercedes E-Class W210 2.0 136HP 1995-2003
  • Mercedes ML-Class W163 2.3 150HP 1997-2005

ECU numbers

  • 024 545 18 32 [04] (Mercedes E-Class W210 2.0 136HP 1996)
  • 024 545 14 32 [08] (Mercedes E-Class W210 2.0 136HP 1997)
  • 024 545 00 32 [04] (Mercedes E-Class W210 2.3 150HP 1998)
  • 022 545 91 32 [08] (Mercedes C-Class W202 1.8 122HP 1998)
  • 022 545 89 32 [02] (Mercedes CLK W208 2.0 136HP 2002)
  • 022 545 88 32 [03] (Mercedes E-Class W210 2.0 136HP 1995)
  • 022 545 57 32 [00] (Mercedes ML-Class W163 2.3 150HP 2004)
  • 022 545 57 32 [00] (Mercedes ML-Class W163 2.3 150HP 2002)
  • 021 545 99 32 [02] (Mercedes E-Class W210 2.3 150HP 2000)
  • 021 545 98 32 [03] (Mercedes C-Class W202 2.0 136HP 1995)
  • 021 545 92 32 [09] (Mercedes C-Class W202 1.8 122HP 1996)
  • 019 545 59 32 [04] (Mercedes E-Class W210 2.3 150HP 1997)
  • 019 545 58 32 [03] (Mercedes E-Class W210 2.0 136HP 1995)
  • 019 545 19 32 [03] (Mercedes E-Class W210 2.3 150HP 1998)
  • 018 545 17 32 [07] (Mercedes C-Class W202 2.8 197HP 1995)
  • 017 545 25 32 [09] (Mercedes E-Class W210 2.3 150HP 1997)

VDO MSE (Black sockets)

  • Mercedes C-class W202 3.6 280HP 1993-2001
  • Mercedes C-class W202 2.8 193HP 1993-2001
  • Mercedes C-class W202 2.2 150HP 1993-2001
  • Mercedes E-class W210 3.2 220HP 1995-2003
  • Mercedes W124 2.2 150HP 1992-1997

ECU numbers

  • WA 202 545 96 32 [01] (Mercedes C-class W202 3.6 280HP 1995)
  • 017 545 71 32 [02] (Mercedes C-class W202 2.8 193HP 1996)
  • 017 545 70 32 [03] (Mercedes C-class W202 2.2 150HP 1996)
  • 017 545 69 32 [06] (Mercedes E-class W210 3.2 220HP 1998)
  • 016 545 33 32 [01] (Mercedes W124 2.2 150HP 1995)

VDO MSE (Yellow sockets)

  • Mercedes E-class W210 2.3 150HP 1995-2003
  • Mercedes E-class W210 2.0 136HP 1995-2003
  • Mercedes W124 3.2 220HP 1992-1997

ECU numbers

  • 019 545 06 32 [08] (Mercedes W124 3.2 220HP 1995)
  • 017 545 26 32 [08] (Mercedes W124 3.2 220HP 1995)
  • 017 545 25 32 [09] (Mercedes E-class W210 2.3 150HP 1996)
  • 017 545 19 32 [07] (Mercedes E-class W210 2.3 150HP 1997)
  • 017 545 18 32 [08] (Mercedes E-class W210 2.0 136HP 1997)
